Backward Search Method-Strips Planning Systems in Artificial Intelligence

 Strips Planning Systems -Backward Search Method

  • In order to make a backward search we must start from goal wffs.
  • After starting from goal wffs we go back through STRIPS rule so that sub-goal wff is produced.
  • If the goal wff formula is g if we go back from g through a STRIPS rule β we get a formula which is weaker that is g' which is the sub-goal.
  • If g' is satisfied before applying the instance of β, the goal wff g will be. satisfied after the instance of β is applied.
  • Let us explain with an example by taking the goal state as P on Q on R which are on floor from the initial state description as Q is on P, P is on R, R on floor which can be seen from Fig. 3.10.4.
Backward Search Method Strips Planning Systems in AI,Backward Search Method in AI,state description of Backward Search Method,Strips in AI notes jntuh

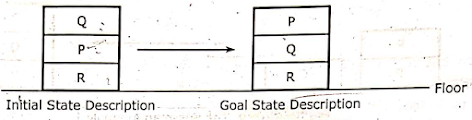

Fig. 3.10.4  A State Description
  • The goal wff is,
        On(R, F) ∧ On(Q, R) ∧ On(P, Q)
  • Now we have to use any operation to the-goal condition so that one of conjuncts in goal condition are achieved.
  • So first we use move(P, x, Q) to get a sub-goal wff.
  • We take variable 'x' because P has to moved from some where to Q.
  • The preconditions that should exist for the operator to apply are,
                On(P, x)
                Clear(P)
                Clear(Q).
  • By using the operation move (P, X, Q) one of the conjunct of goal wff i.e., On(P, Q) is achieved.
  • On(P, Q) may not be present in the sub-goal, but the preconditions which are not present in the goal wff has to be present in it.
  • The variable 'x' cannot be I as P is being moved onto Q, it cannot be Q as it is to which it is being moved, it cannot be R, if it is R On(P, R) has to be in sub-goal wff so we can't achieve On(Q, R). So we consider x to be floor move(P, x, Q) is known to be partially instantiated operator as x is not known.
  • Another approach for backward search is to use move(Q, z, R) to achieve On(Q, R).
  • The preconditions are,
                On(Q, z)
                Clear(Q)
                Clear(R)
    Here z cannot be P as it On(Q, P) is not mentioned in goal state, it cannot be Q as it is being moved and it cannot be R as we are moving to it. So here also it is assumed to be floor.
  • The result of regression through move(P, x, Q) is shown in Fig. 3.10.5.
Backward Search Method Strips Planning Systems in AI,Backward Search Method in AI,state description of Backward Search Method,Strips in AI notes jntuh

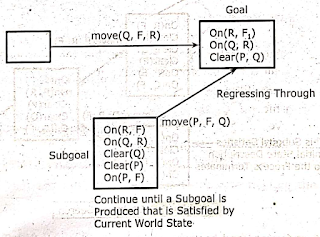

Fig. 3.10.5 Regressing a Conjunction through STRIPS Rule Containing Variables
  • It has to be noted the other sub-goal wffs that are not produced are neither added nor destroyed by the operator so they are simply passed through the operator.
  • Delaying the specification, of 'from place' in move operator is known as least commitment planning.
  • It the from place' is floor the operation will become move(P, F, Q) and On(P, Q) is achieved. The Fig. 3.10.6 represents the regression through move(P, F, Q).
Backward Search Method Strips Planning Systems in AI,Backward Search Method in AI,state description of Backward Search Method,Strips in AI notes jntuh
Fig:3.10.6 Regressing a Conjunction through STRIPS Operator
  • The backward search continues until a sub-goal is produced that satisfies the initial state description..
  • In large problems the occurrence of variables may complicate the backward search procedure.
  • The complete procedure of backward search for the example in Fig. 3.10.4 can be shown in the Fig. 3..10.7.
Backward Search Method Strips Planning Systems in AI,Backward Search Method in AI,state description of Backward Search Method,Strips in AI notes jntuh
Fig. 3.10.7 Backward Search
  • In breadth first forward and backward search, no particular order is followed in order to achieve goal conjuncts.
  • It is beneficial to search in plan space instead of searching in formula spaces. Partial ordering of steps can be observed in plan spaces.
